Experience the ultimate convenience for all of your robot building needs with the RobotMakersAlmanac.

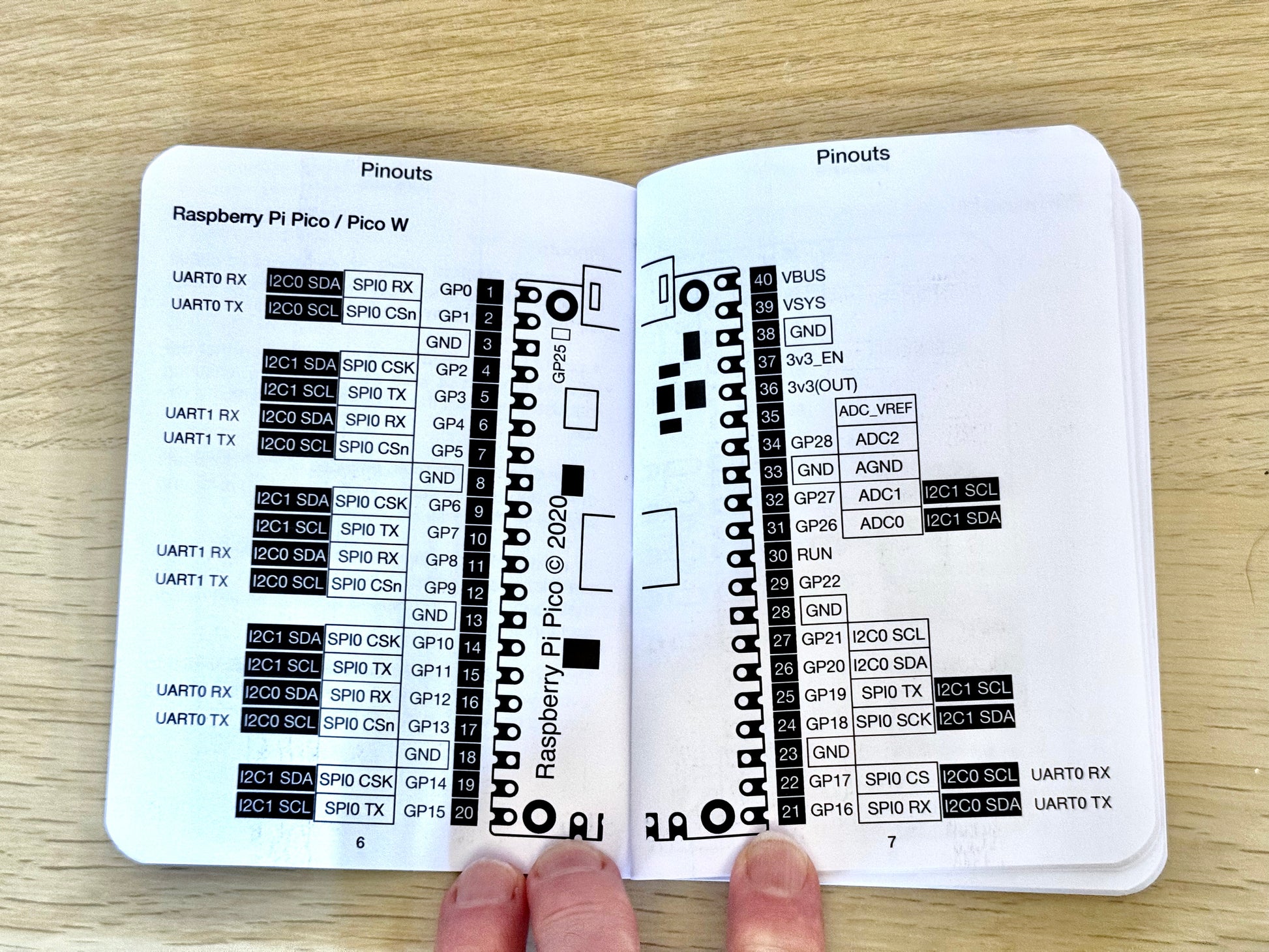

Our pocket-sized reference guide includes vital information like pinouts and dimensions for popular components such as Raspberry Pi, Arduino, M5 Stamp, and MicroBit. Plus, it even includes electrical symbols and resistor values, making it an essential resource for any passionate robotics enthusiast!
Contents

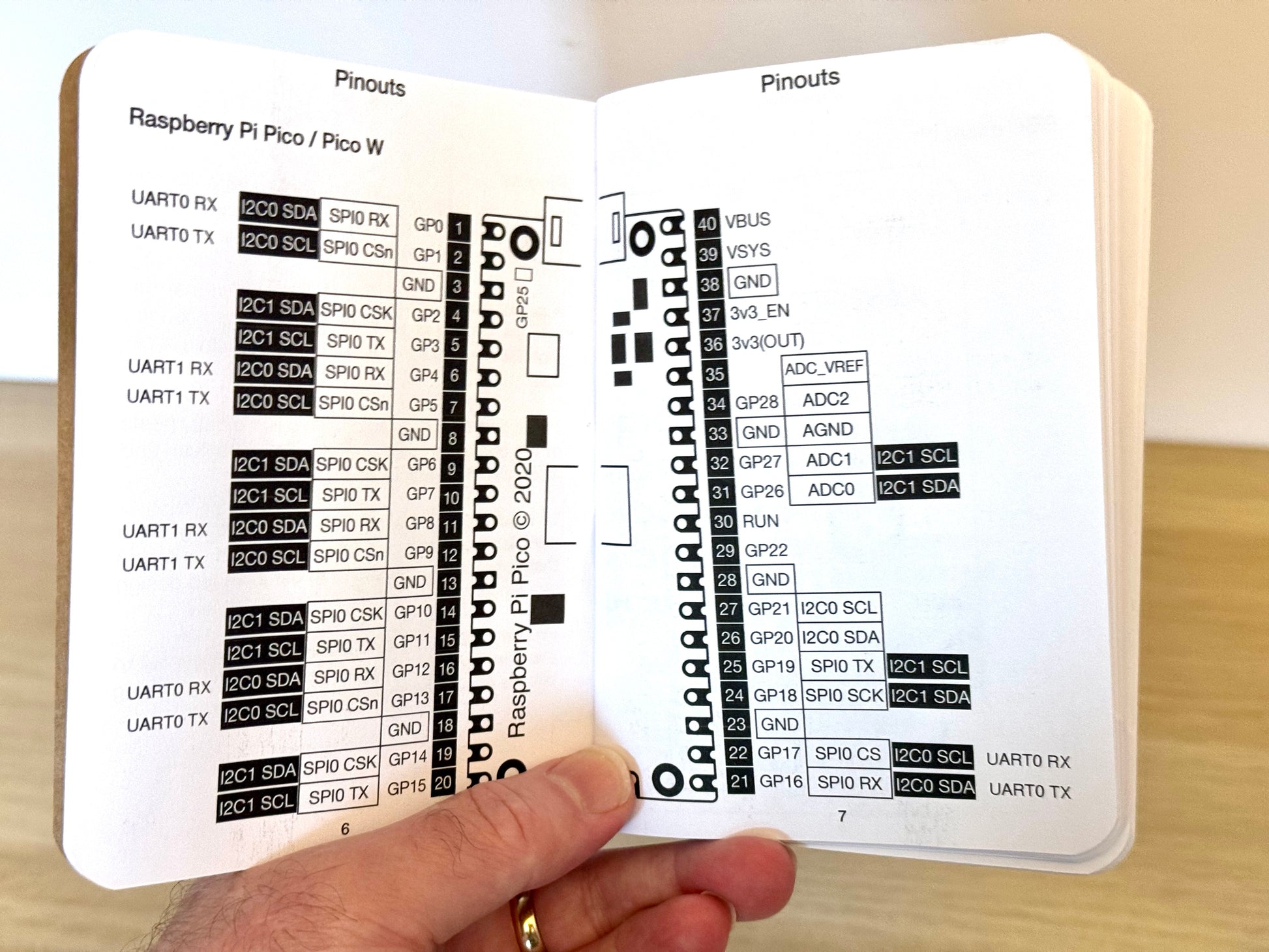

Pinouts Raspberry Pi Pico / Pico W 6 BBC micro:bit 8 Arduino Uno R3 10 Arduino Nano 12 HC-SR04 13 M5Stamp Pico 14 M5Stack Core 15 Raspberry Pi 2/3/4/Zero Boards 16 Raspberry Pi 2/3/4/Zero/400 17 MX1508 18 L298N Motor Driver 19

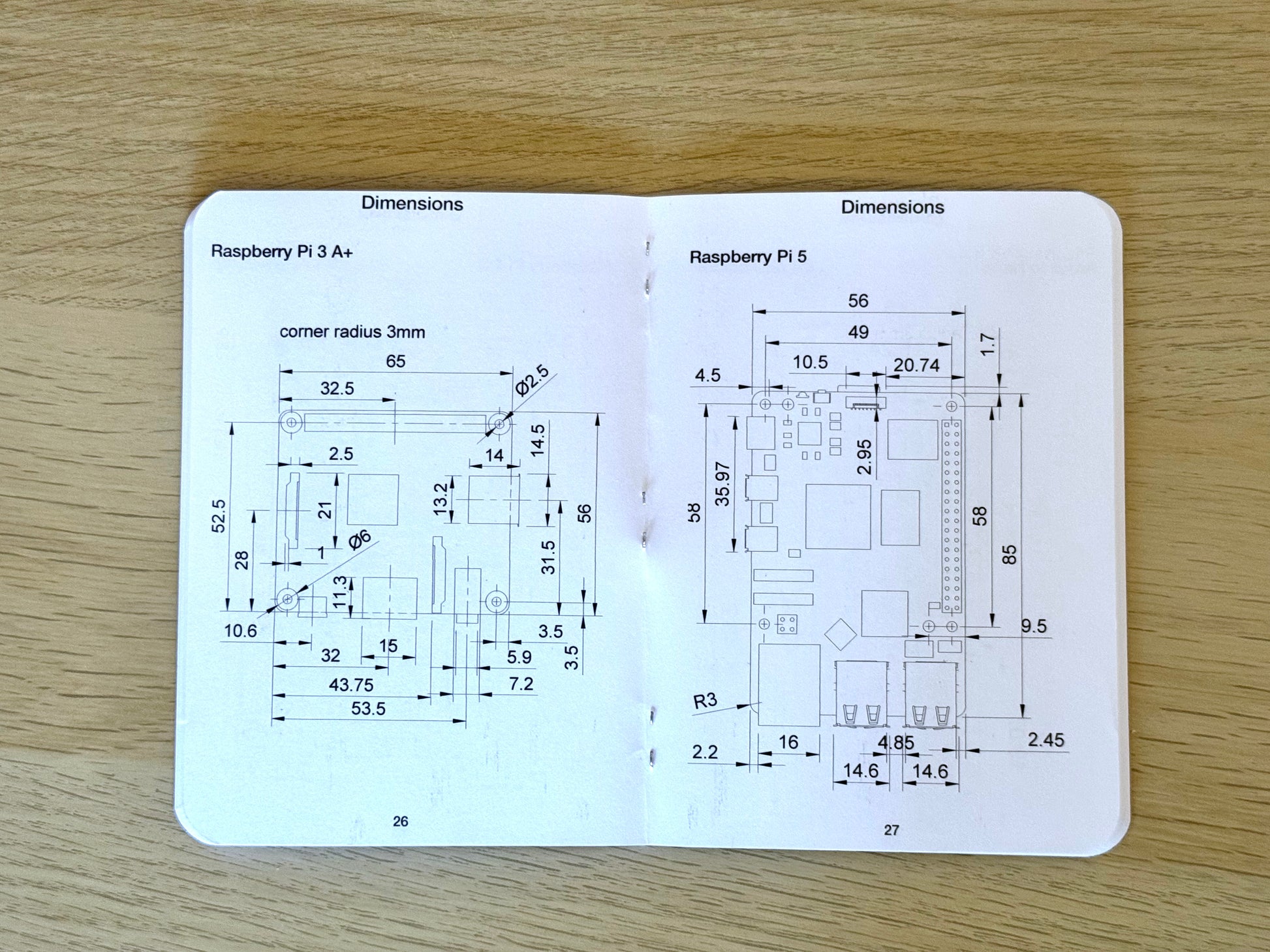

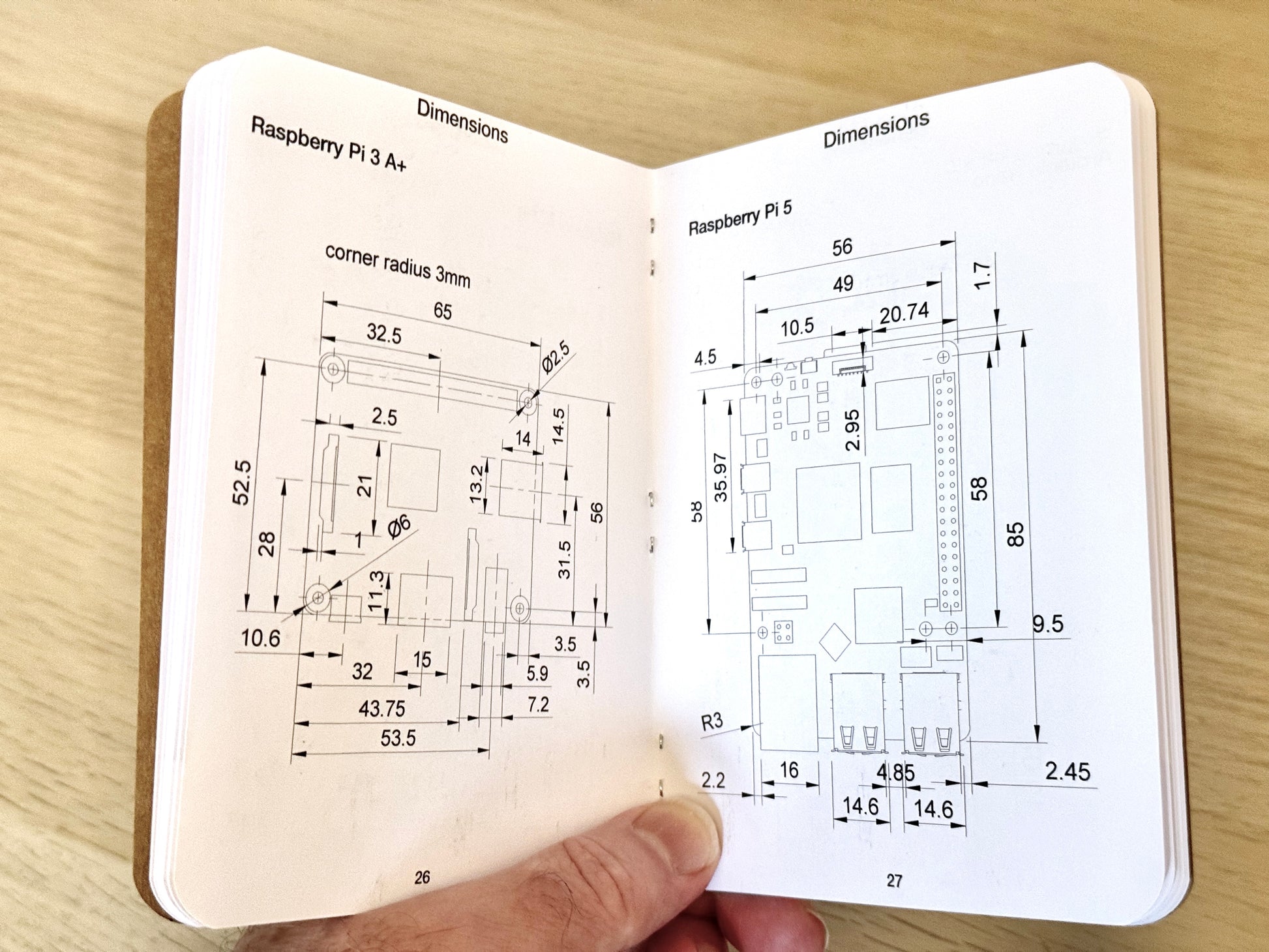

Dimensions SG90 Servo 22 Raspberry Pi Pico / Pico W 23 Raspberry Pi Zero 2 W 24 Raspberry Pi 4 B 25 Raspberry Pi 3 A+ 26 Arduinio Nano 27 Arduino Uno R3 28 HC-SR04 Range Finder 29 TT Geared Motor (Yellow Servo) 30 Raspberry Pi High Quality Camera CS Mount 32 Raspberry Pi Camera Module 3 Standard 343 N20 DC Motors 36 L298N Motor Driver 38

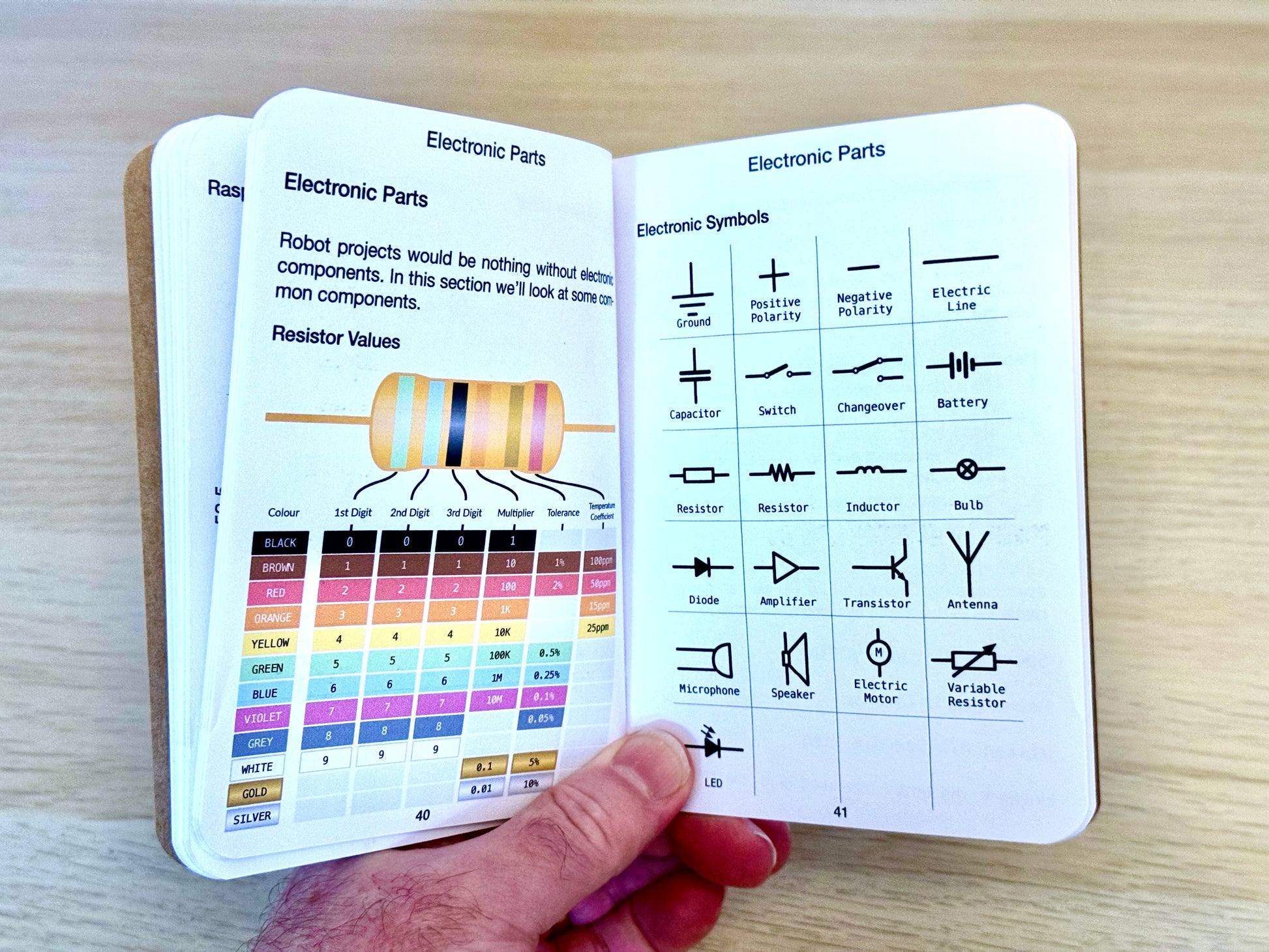

Electronic Parts Resistor Values 39 Electronic Symbols 40 Ultrasonic Range Finder Sensors 41
